Instruments & Sensor

Texas Electronics offers a comprehensive range of high-quality instruments and sensors designed for precision measurement and monitoring across various industries. Our solutions include environmental sensors, industrial automation instruments, and IoT-enabled devices that ensure accurate data collection and reliable performance. Backed by cutting-edge technology and robust engineering, our sensors are ideal for applications in weather monitoring, process automation, and smart infrastructure management. Trust Texas Electronics for innovative and dependable sensor solutions that drive operational excellence.


Our Product

Hand-Held Sensor

Handheld sensors developed by Texas Electronics are centered on the user's needs. They are more user-friendly because of their compact design and lightweight equipment

Instruments

A team of experts in creating robust, high-quality equipment that meets the customer's requirements. We produce very affordable instruments that meet high quality and low maintenance requirements

Customized Solution

We have an expert team of engineers who take care of the customer's specific and customized requirements. We have provided a unique solution to our customers that meets their requirements within their budget

High Speed | Multichannel | Light Weight

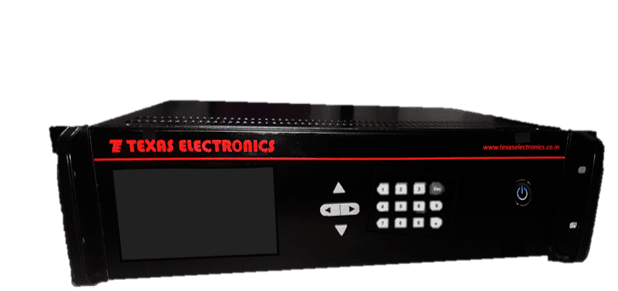

Industrial Data Logger
SPECIFICATION
  • No. Of channels 8 Nos. (7 nos. for Temperature and 1 no. for Humidity)
  • Input (4 to 20) mA from Temperature and Humidity Transmitter
  • Range (0.0 to 60.0) Deg C for Tempo (0.0 to 100.0) %RH (0.0 to 100.0) %RH for Humidity
  • Accuracy +/- 0.5% for Temperature +/- 3% for Humidity
  • Display Display 5 digit each 0.5” 7-segment Red LED to display, Process, Alarm values and Real Time Clock and 2 digit 0.3” 7-segment Red LED for channel no.
  • Scan Rate 1 to 99 sec (programmable through front panel keyboard)
  • Data Storage Interval 1 to 99 minutes (user programmable).
  • Data Storage 8000 records. (512 MB)
  • Meet requirement of NBL
  • Meet EURO VI/BS VI Requirement for soak data logging

Hand-Held Sensor

CO GAS DETECTOR (AS8700A)
CO GAS DETECTOR (PLT-300)
Ammonia Gas Detector (TEX-NH31)
Four Gas Detector

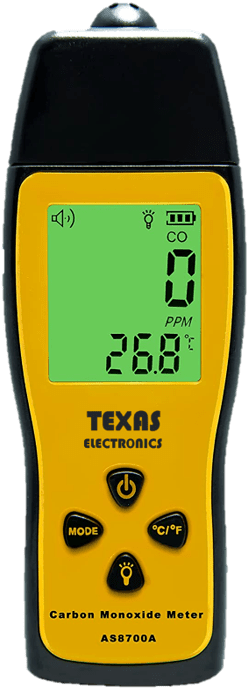

CO GAS DETECTOR (AS8700A)
                                                                                                                     


SPECIFICATION

Sensor Type: Stabilized Electrochemical Gas Specific (CO)

Model: AS8700A

Gas Detection: Carbon Monoxide (CO)

Temperature Measurement: Ambient Temperature

Display Unit: CO: ppm, Temperature: ℃/℉

Measurement Range: CO: 0~1000PPM, Temperature: 0~50℃

Resolution: CO: 1PPM, Temperature: 0.1℃

Accuracy: CO: ±5% or ±10PPM, Temperature: ±1.5℃

Response Time: <60s

Alarm: Sound Alarm

 larm Point: Pre-set (Adjustable)

Battery Type: 3 * AAA 1.5V Alkaline Batteries (NOT Included)

Operating Temperature: 0~50℃, Relative Humidity 1%~95%

Storage Temperature: -30~60℃, Relative Humidity: 1%~95%

Color: Orange + Black

Material: ABS Plastic

Item Size: Approx.13.5 * 5 * 3.5cm (L*W*H)

Item Weight: Approx. 89g

Package Size: Approx. 21.5 * 15 * 5cm (L*W*H)

Package Weight: Approx. 127g                                                                                                                                                                                                                                                                                                                                              

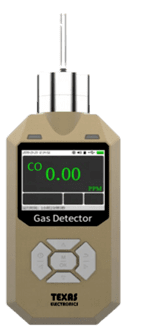

CO GAS DETECTOR (PLT-300)
                                     
           SPECIFICATION
Type: CO Detector with Pump

Make: Texas Electronics

Model Number: PLT-300

Product name: CO Gas Detector

Detecting Gas: Carbon Monoxide (CO)

Measure Range:0-1000 PPM

Unit %VOL, %LEL, ppm, mg/m³

Accuracy: CO: ±5% or ±10PPM, Temperature: ±1.5℃

Warm-up time ≤60S

Color: Gold

Usage: Industrial Production

Alarm Type: Vibration+Sound+Light Alarm

Power supply: AC

Weight:0.5g

Size:130*63*36mm (LxWxH)

Material: Aluminum Alloy

Operating temperature: -20℃~+50℃ (Special requirements need to be customized）

Working humidity: ≤95%RHNo condensation

Work pressure: -30kPa~200kPa

Pump flow rate:300-500CC/Min

Charging voltage: DC 5V

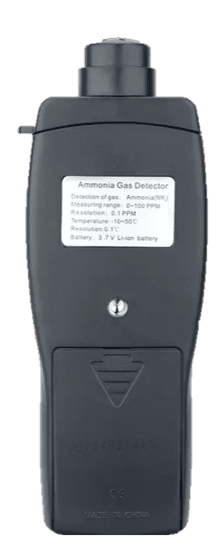

Ammonia Gas Detector (TEX-NH31)
 
SPECIFICATIONS
Gas Measurement Type: Ammonia gas( NH3 )
Model : TEX-NH31
Measuring range :0~100PPM
Resolution :0.1PPM
Basic error:0.5PPM
Response time: Less than 120 seconds
Recovery time: Less than 120 seconds
Repeatability: Less than ± 1%
Measuring Principle :Electrochemical principle, life for 2 years
Low / High Alarm: Yes
Alarm: Acoustic, optical double alarm, can set the alarm value,
           an alarm sound is up to 80dB
Working Temperature: -20~ 50℃
Working Humidity :<95%RH (Non Gel)
Working Humidity :<95%RH (Non Gel)
Storage Temperature : 0~40℃
Power Supply:3.7V li-battery(included)
Product Weight:170g
Product Size: 181*63*30(mm)		 
Four Gas Detector
                                SPECIFICATION
Model: TX-4GAS
Colour: Orange/Black/Yellow
Accuracy: CO: : ≤±5% FS
Measurement Range: CO: 0~1000PPM,Temperature: 0~50℃
Response Time: <30s
Display Unit: CO: ppm, Temperature: ℃/℉
Working Environment: 0℃～50℃,
Operating Temperature: 0~50℃,
Relative Humidity: 1%~95%
Storage Temperature: 0~60℃,
Power Source: DC3.7V
Li-on battery: 1800mAh (Varies as per Model)
Dimensions: 145mm×74mm×30mm (L×W×H)
Weight: 215g
